BL404 Audio Rack

$540.00

Category:
A black four-tier rolling utility cart with wheels on wooden flooring.

Description

Features

  • Accommodates up to 27″ TV set and three audio / video components.
  • Height clearance space between shelf: 9″, 7″ and 7″ (from bottom).
  • Width clearance space between pole: 201/2“.
  • Additional shelf can added.
  • Overall dimensions: 23 1/2″ (W) x 20″ (D) x 32 1/4″ (H).
  • Weight Capacity:  single shelf 200 lbs, whole rack 350 lbs
  • Poles are sand or metal bits fillable.
  • Available pole color: B – Black; S – Silver.
  • Available cap / spike color: G – Gold; B – Black; S – Silver.
  • Available shelf color: B – Black; C – Cherry; N – Natural.
  • Available model #: BL404BB, BL404BC, BL404SB, BL404SC, BL404GB, BL404GC, BL404SSB, BL404SSC.
  • Note: First letter at end of item number represents either cap/spike color; last letter represents shelf color, middle letter represents silver frame color (omitted for black color)

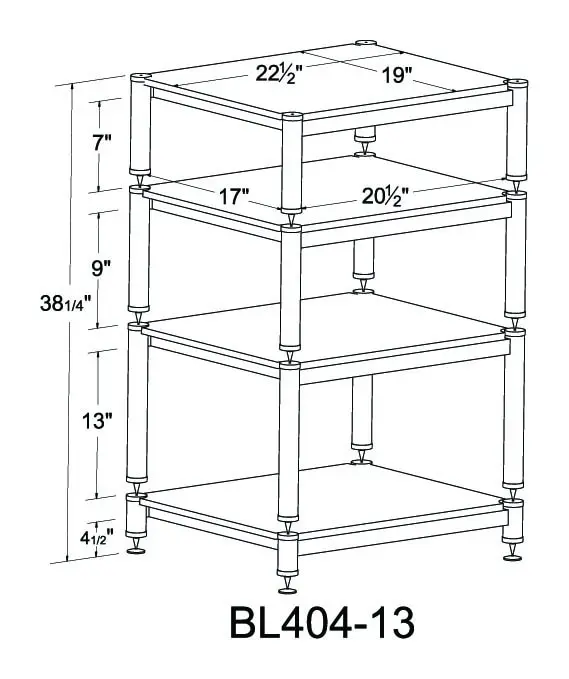

  • New Feature: BL404-13 (adding suffix -13 to the above model number Clearance space: between shelving 13″, 9″ and 7″ (from bottom).
  • Shelf Color Sample:

Photos

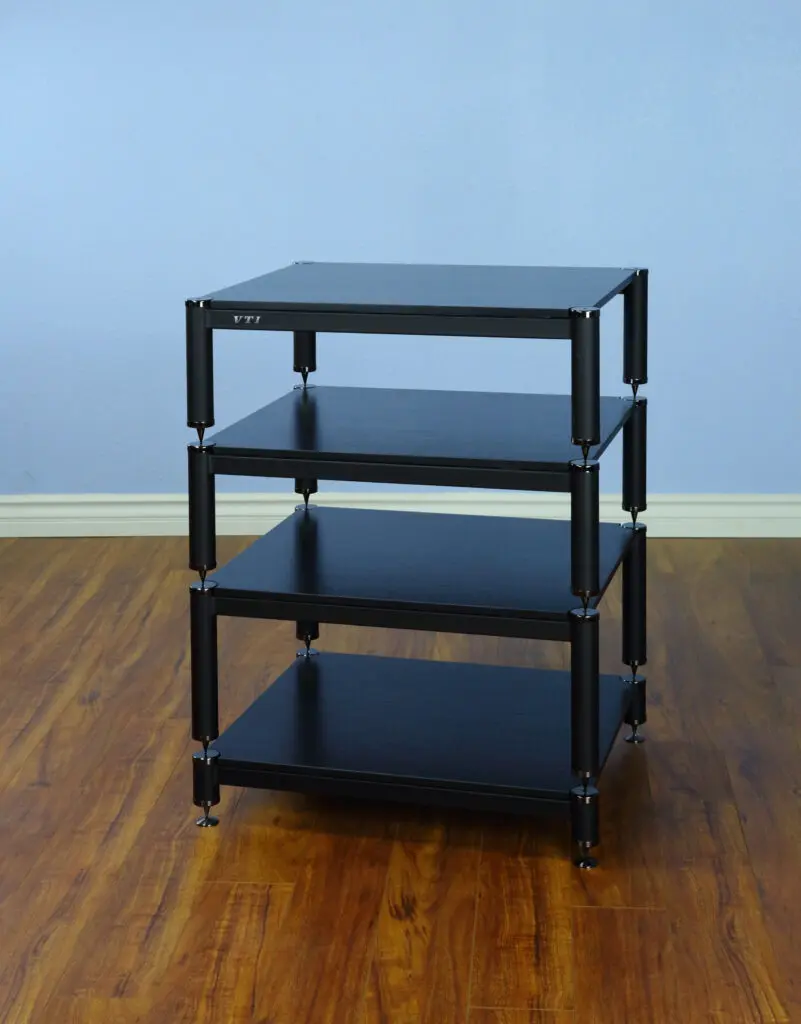

A black four-tier rolling utility cart with shelves on a wooden floor.
BL404BB

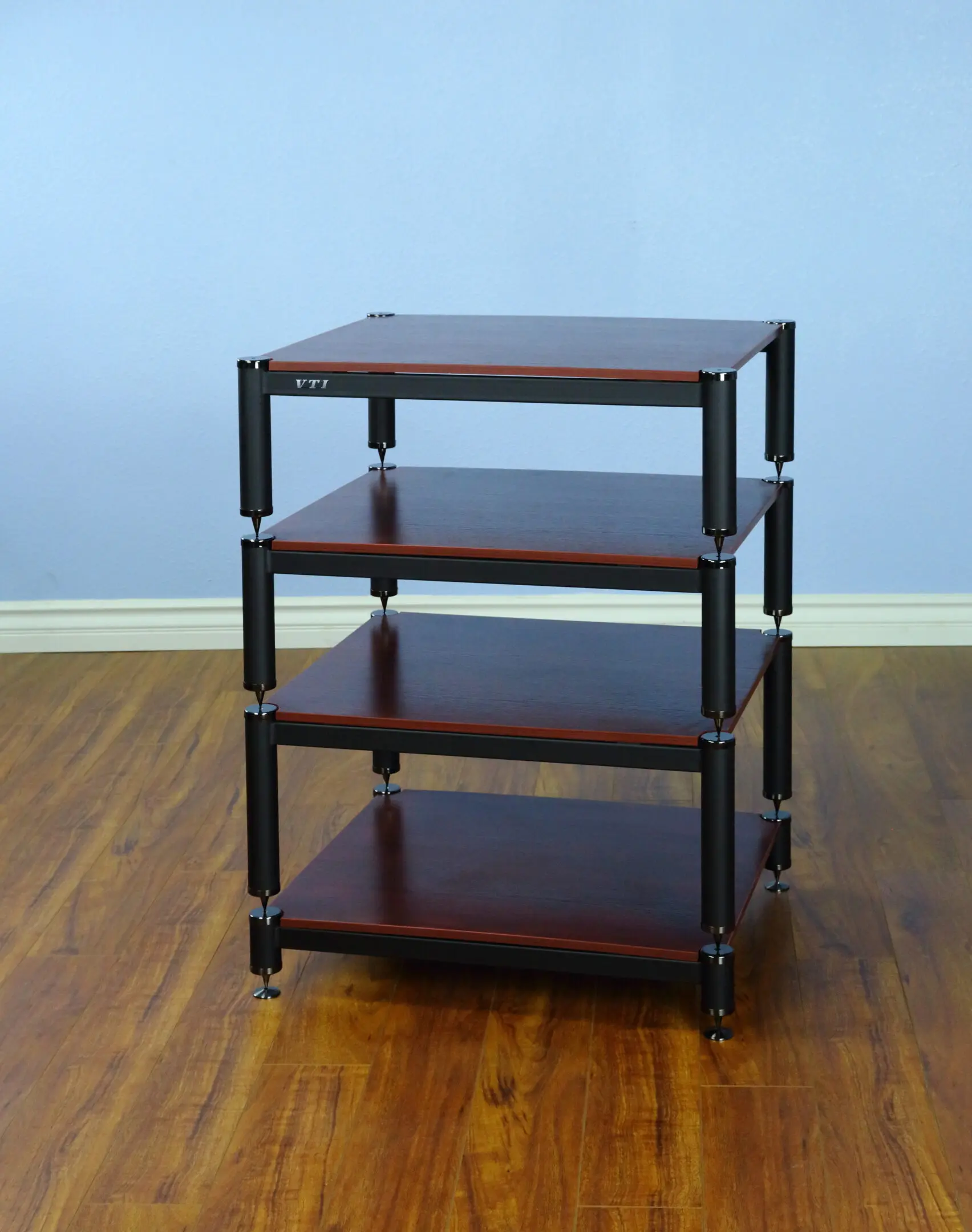

A dark wooden four-tier shelving unit with turned legs against a light blue wall.
BL404BC

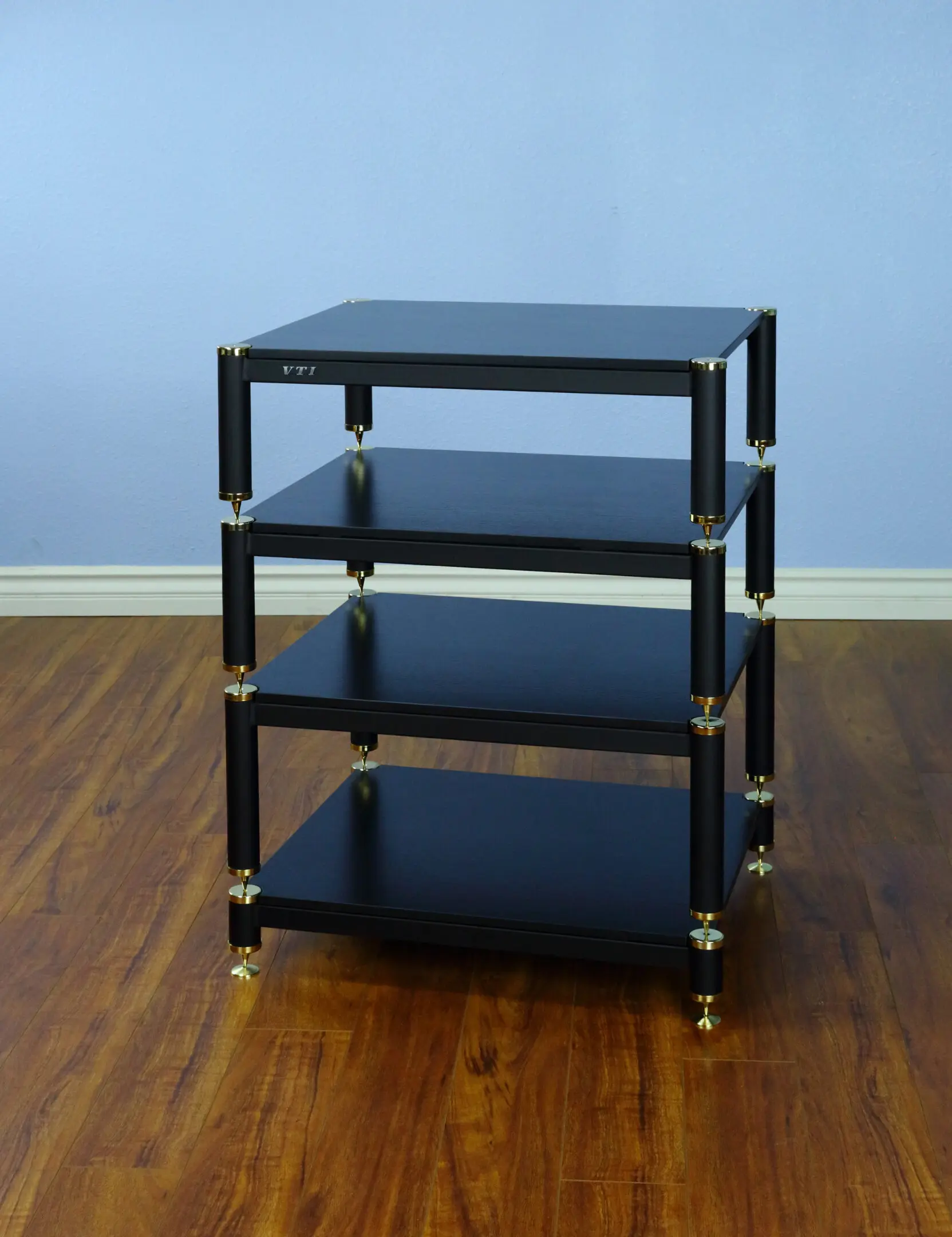

A black four-tier audio rack with metal supports on wooden floor.
BL404GB

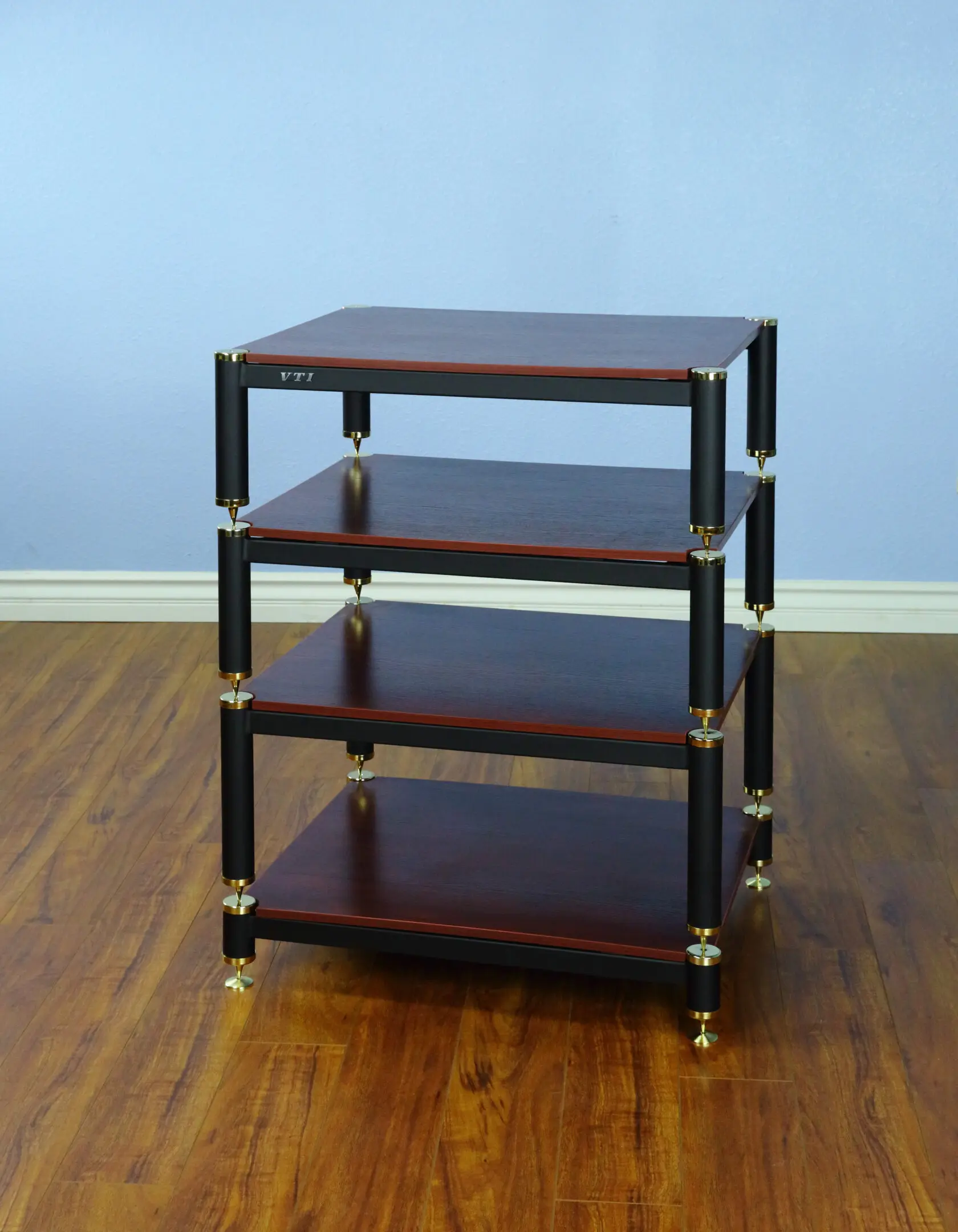

A four-tier wooden shelving unit with metal supports on a hardwood floor.
BL404GC

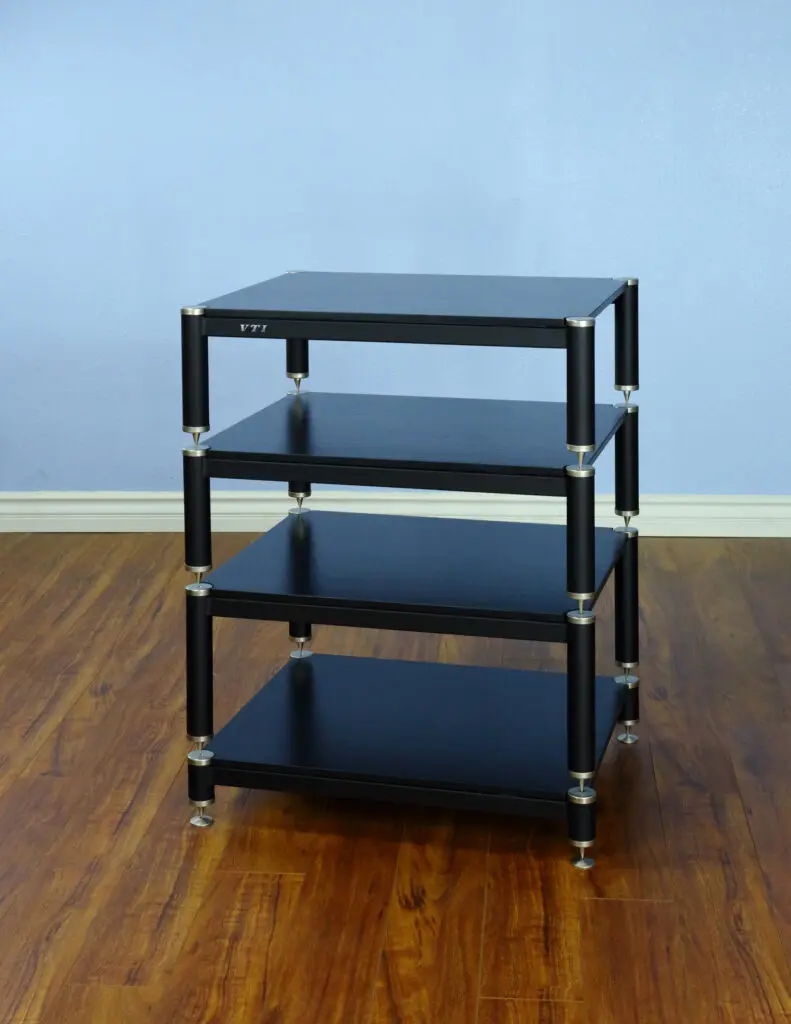

A black four-tier shelving unit on wheels against a blue wall.
BL404SB

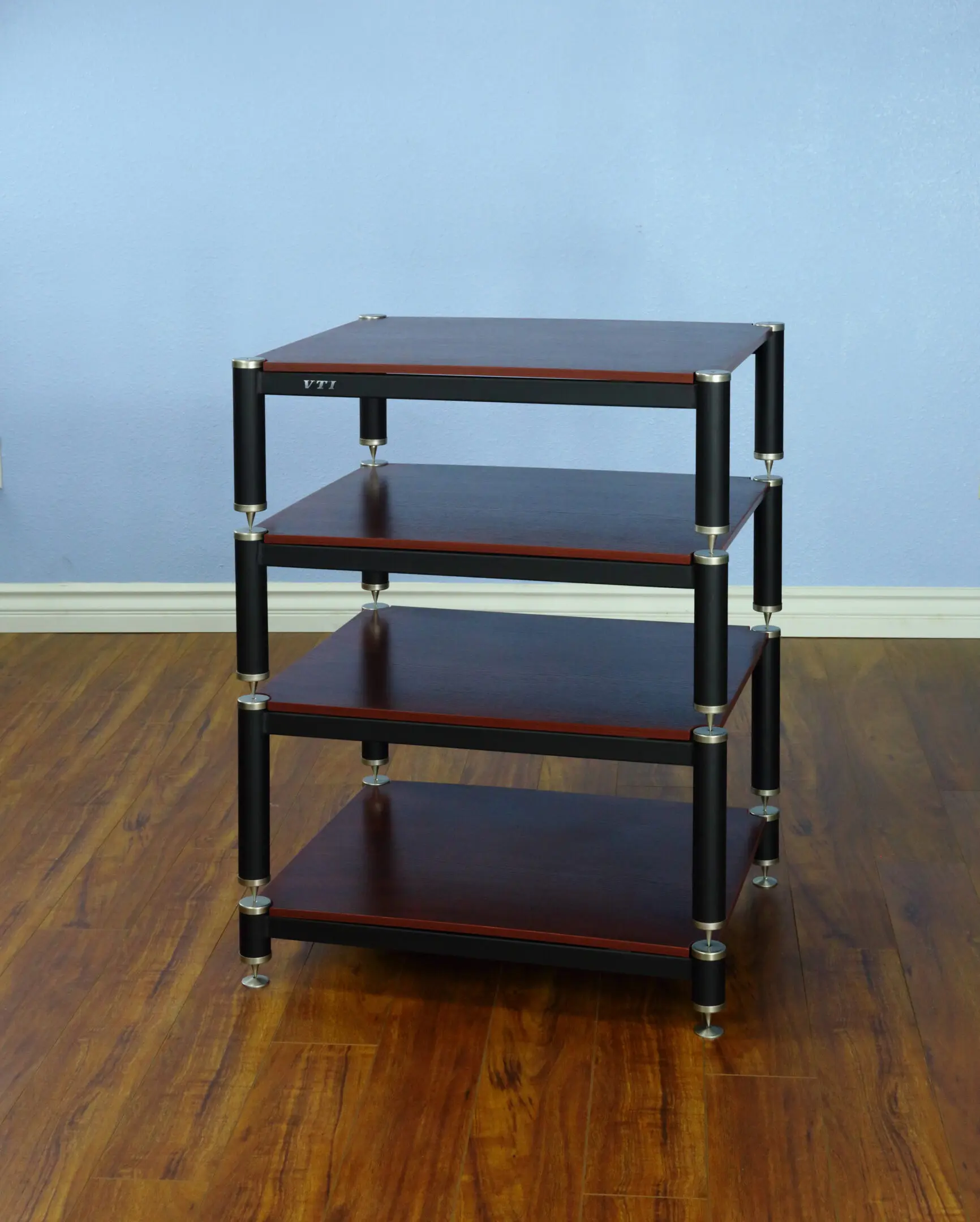

A four-tier wooden and metal shelving unit on wheels against a blue wall.
BL404SC

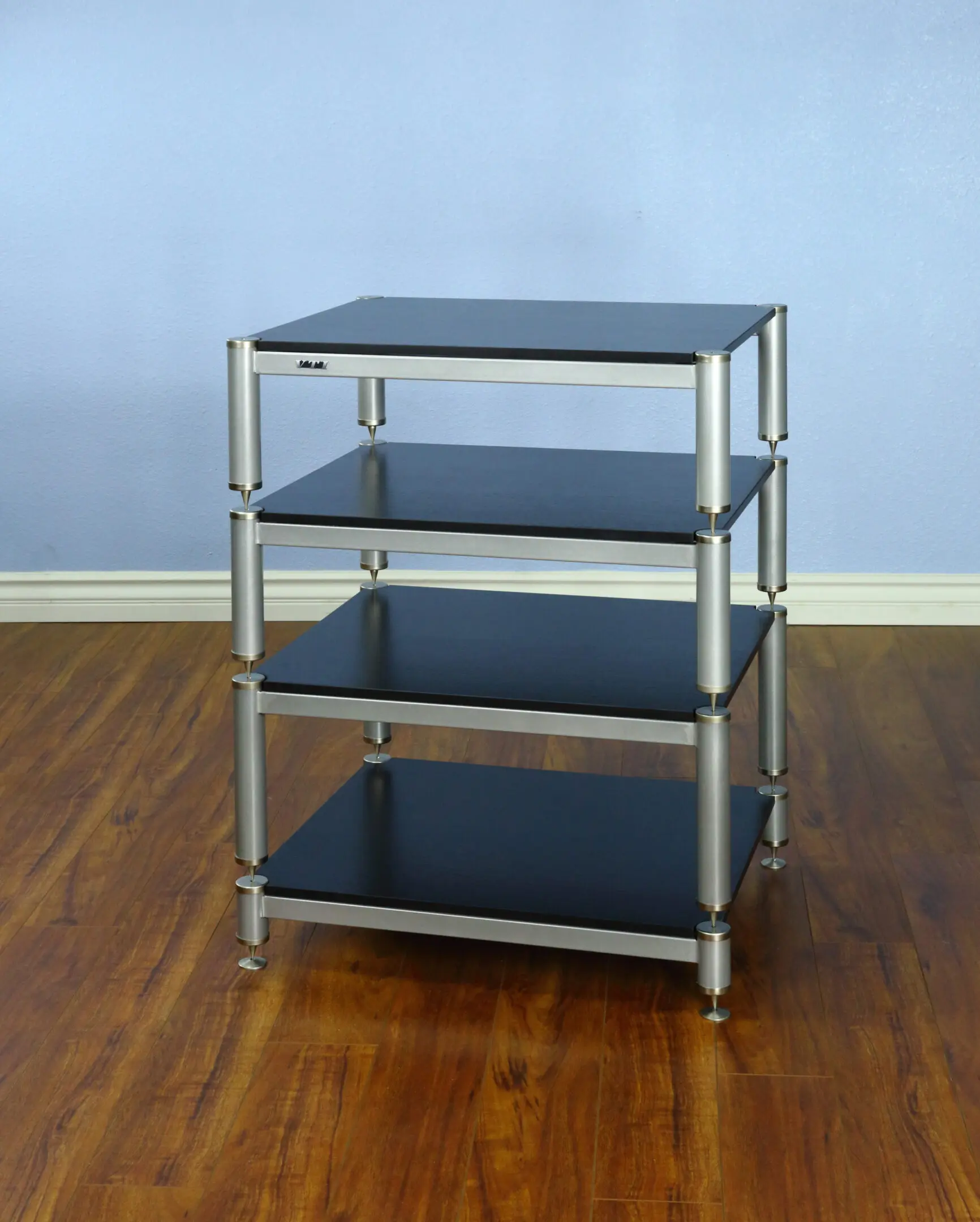

A four-tier black and silver metal shelving unit on a wooden floor.

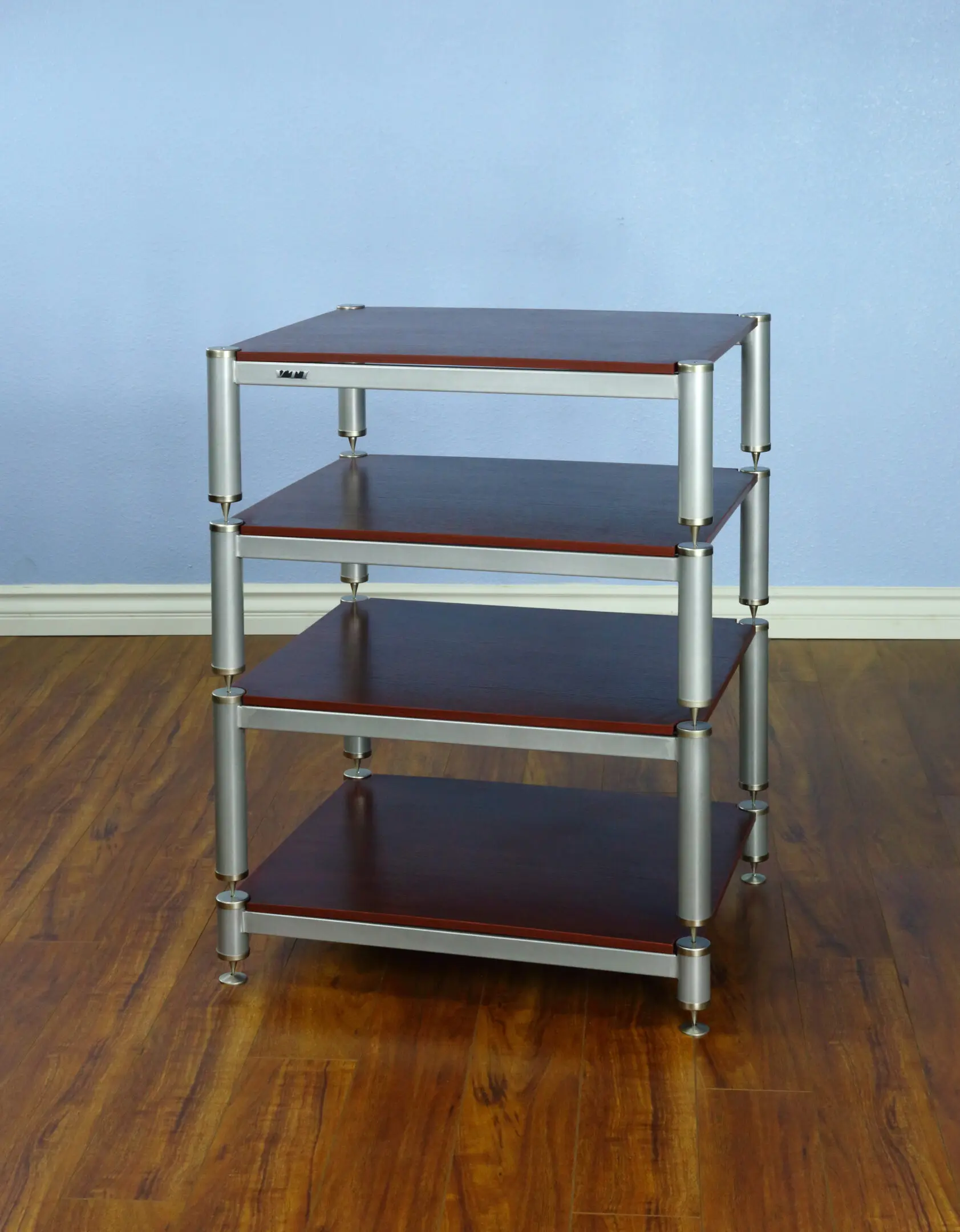

A four-tier metal and wood storage shelf on a wooden floor.
BL404SSC

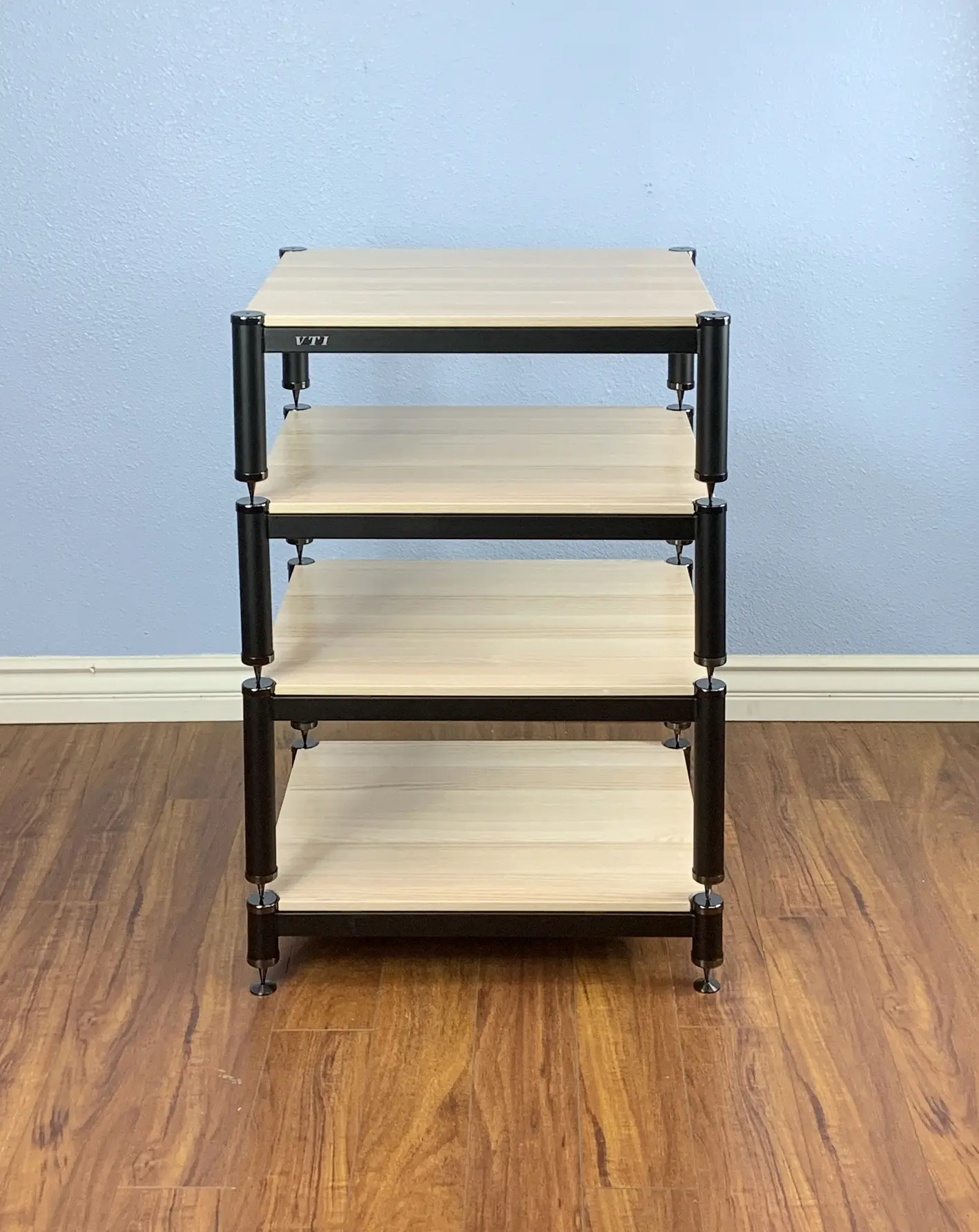

A four-tier wooden and metal shelf unit against a blue wall.

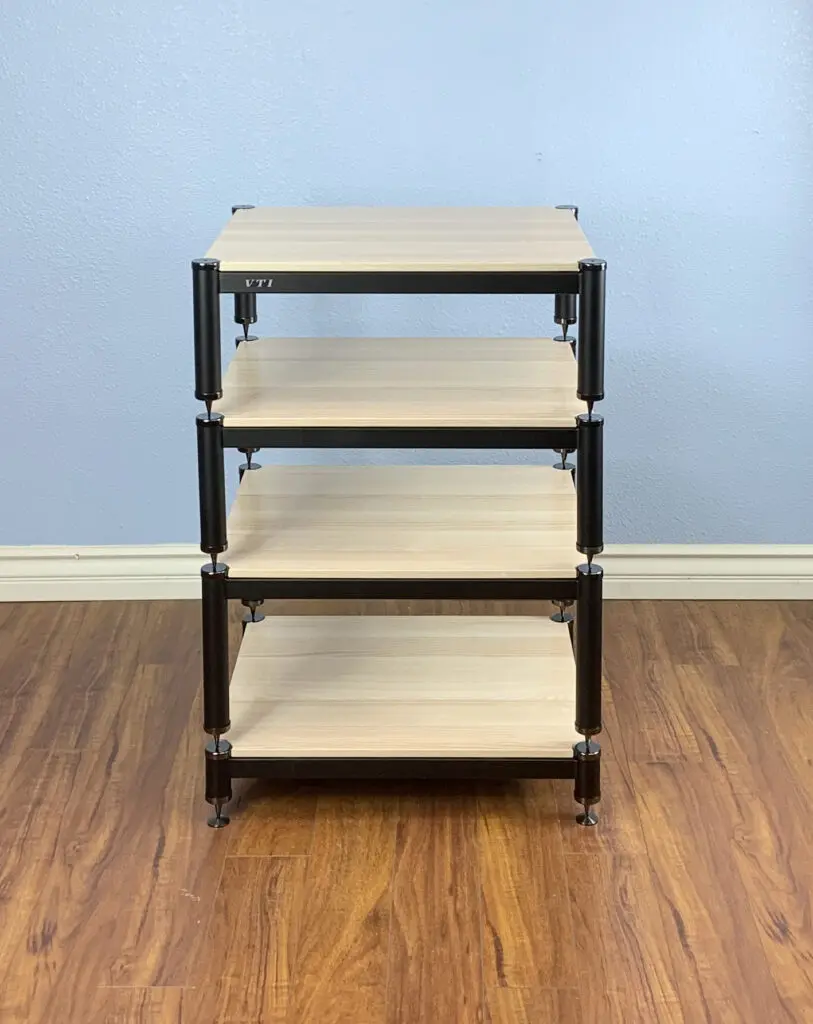

BL404BN

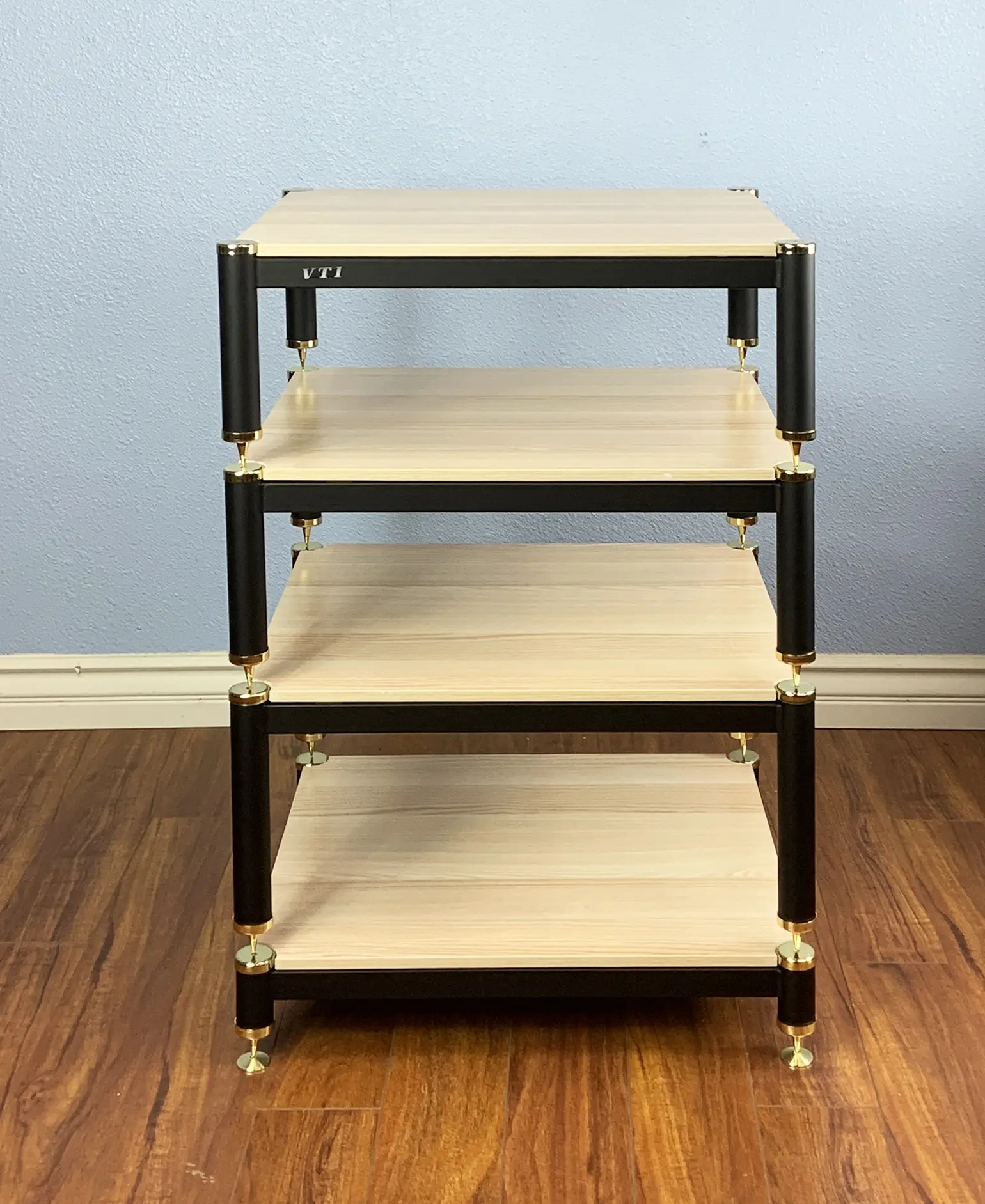

A four-tier wooden shelf with black metal frame and caster wheels.
BL404GN

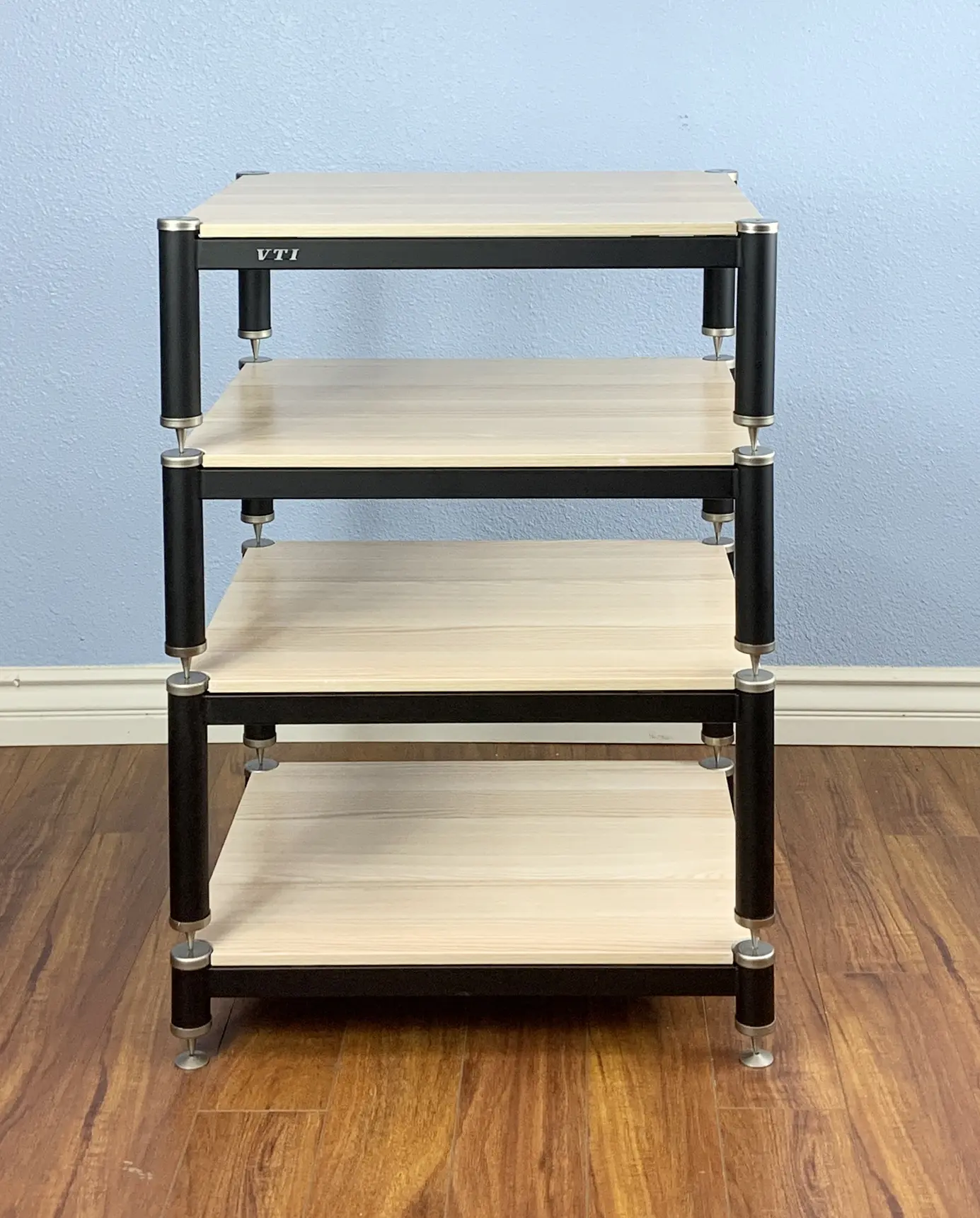

A modern wooden shelving unit with four tiers and black frame.

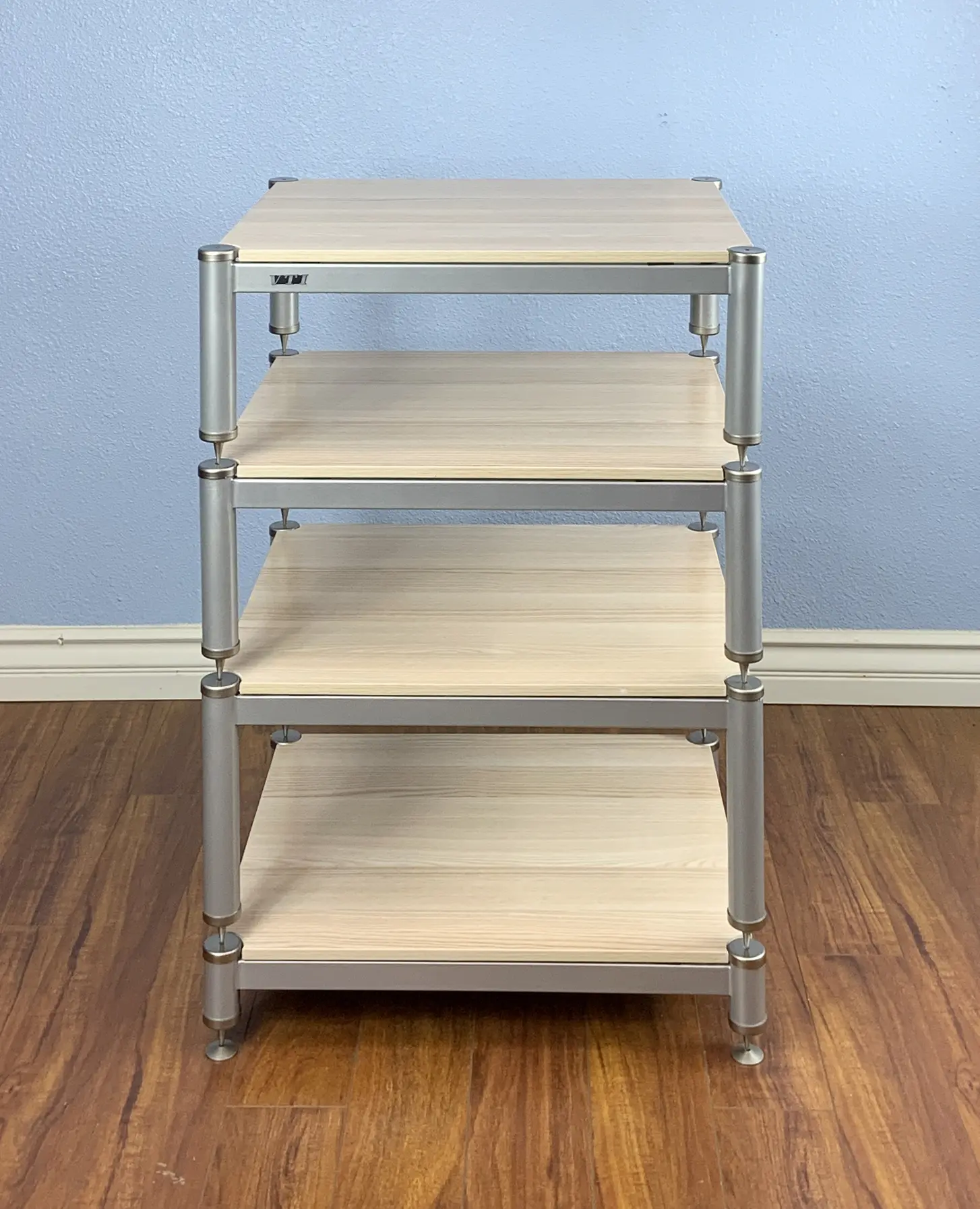

A four-tier wooden shelf with metal frame on a wooden floor.
BL404SSN

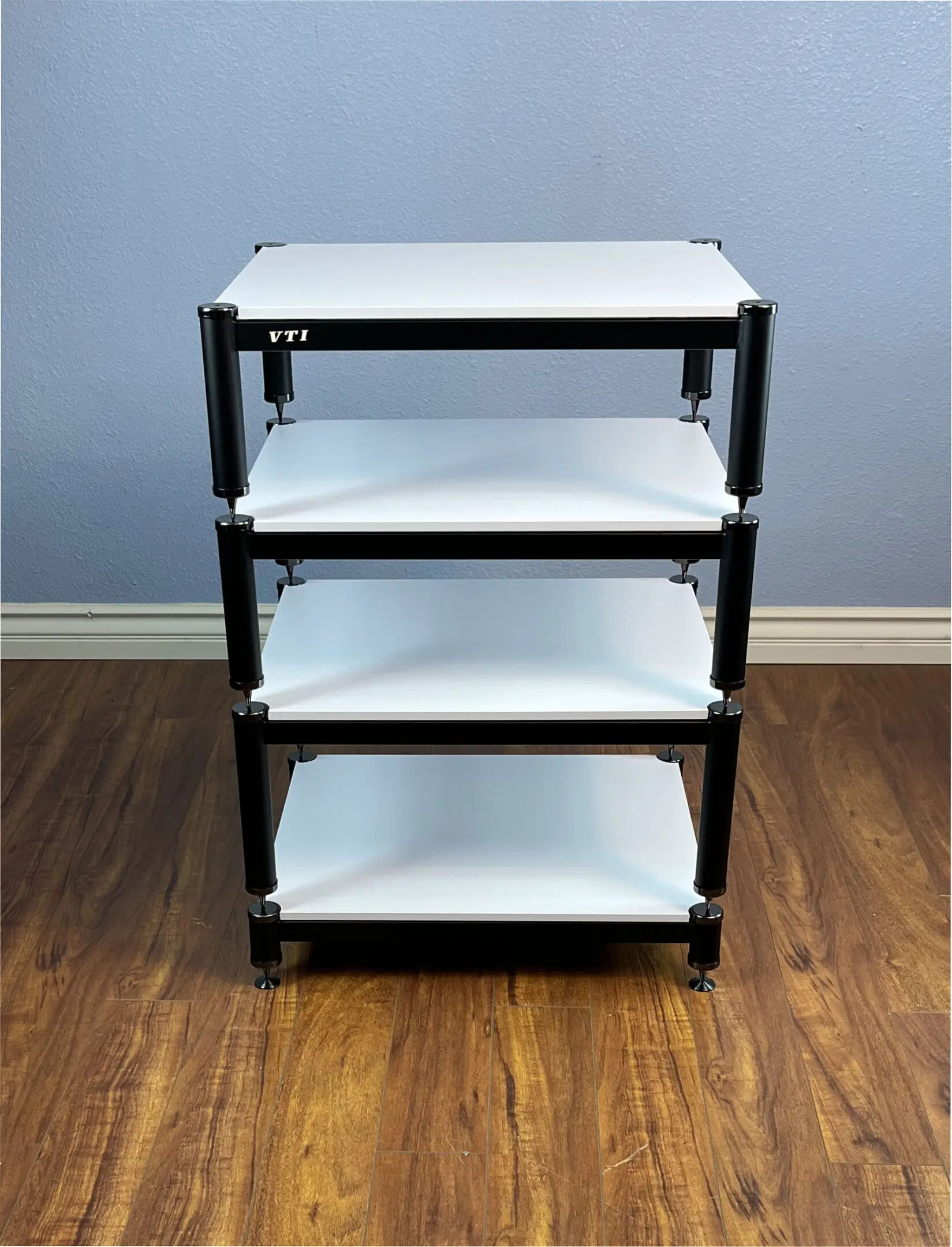

A four-tier black metal and white shelf unit on wheels.
BL404BW

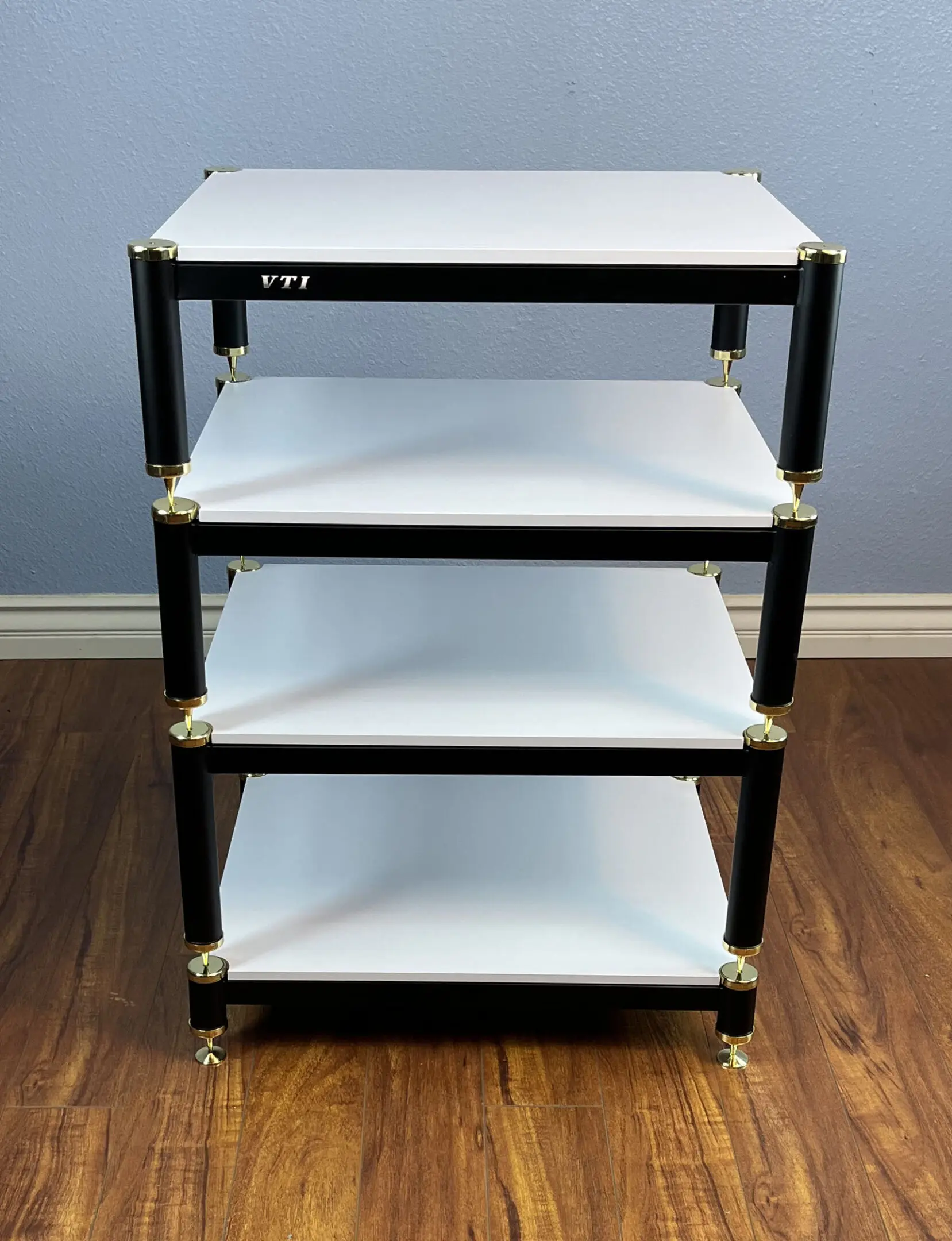

A four-tier black and white rolling utility cart on a wooden floor.
BL404GW

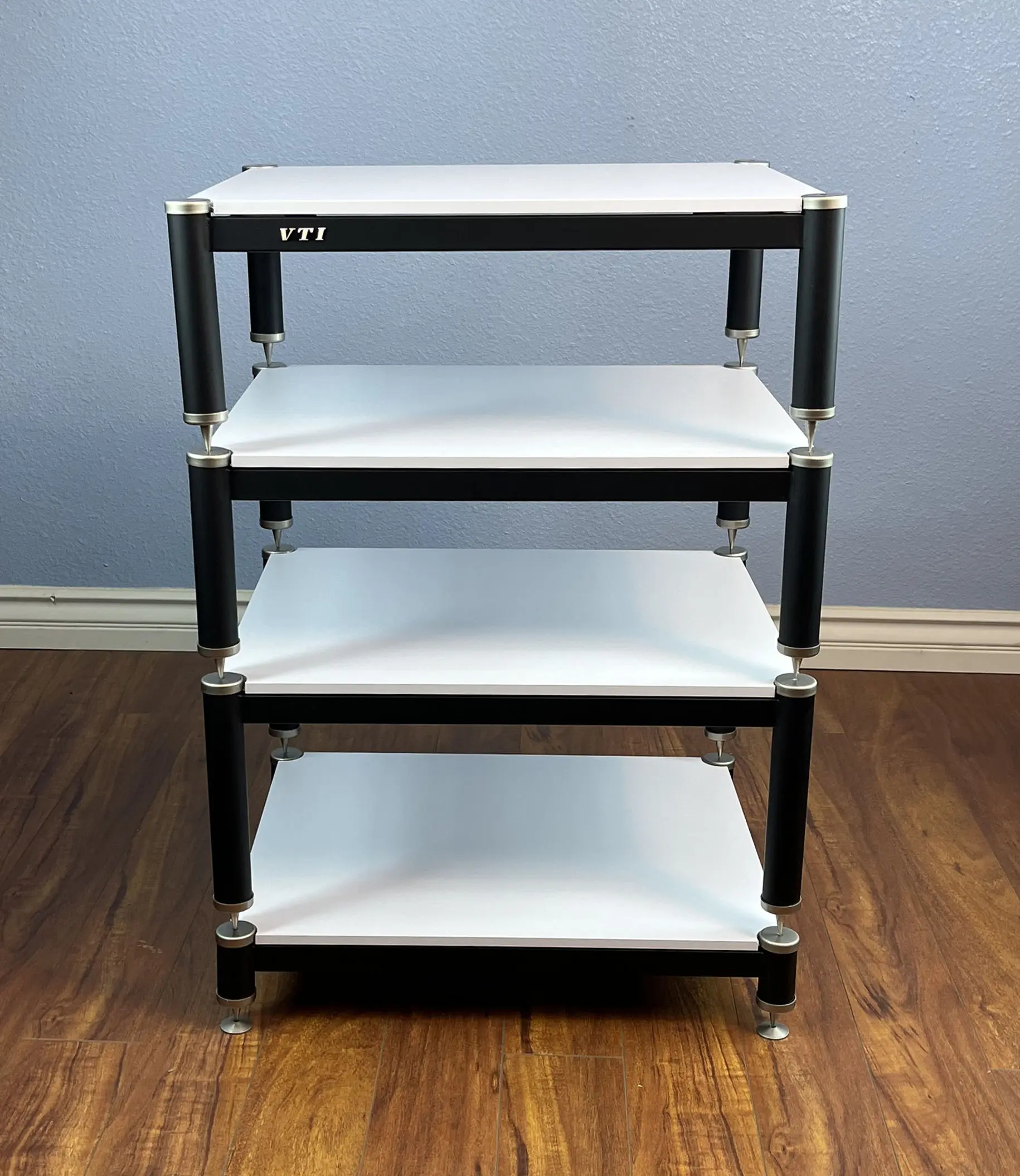

A four-tier black and white utility cart with wheels on hardwood floor.
BL404SW

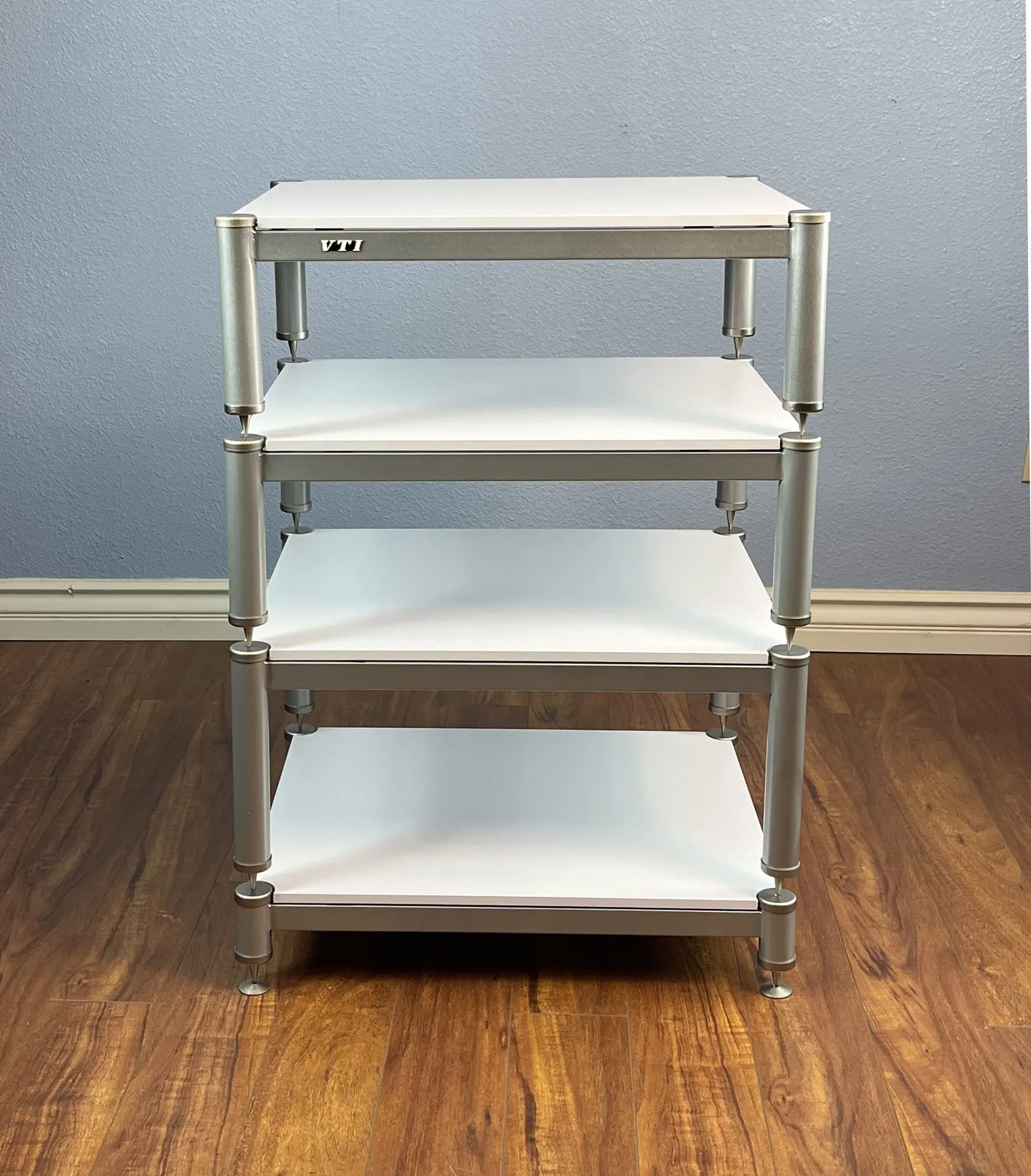

A four-tier white shelving unit with metal frame on wooden floor.
BL404SSW

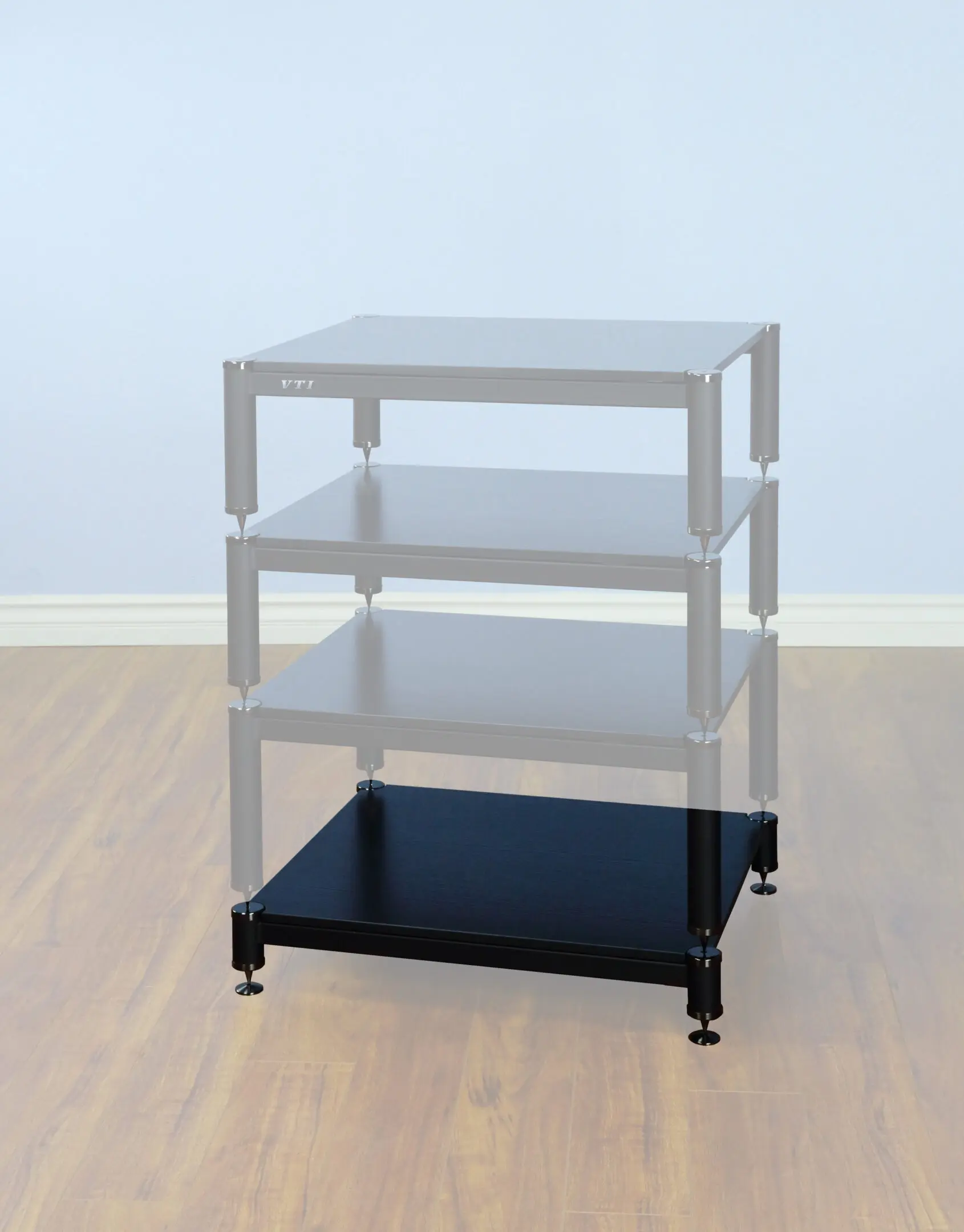

A black metal shelf unit with adjustable height settings.
BL404-01-3-inch1

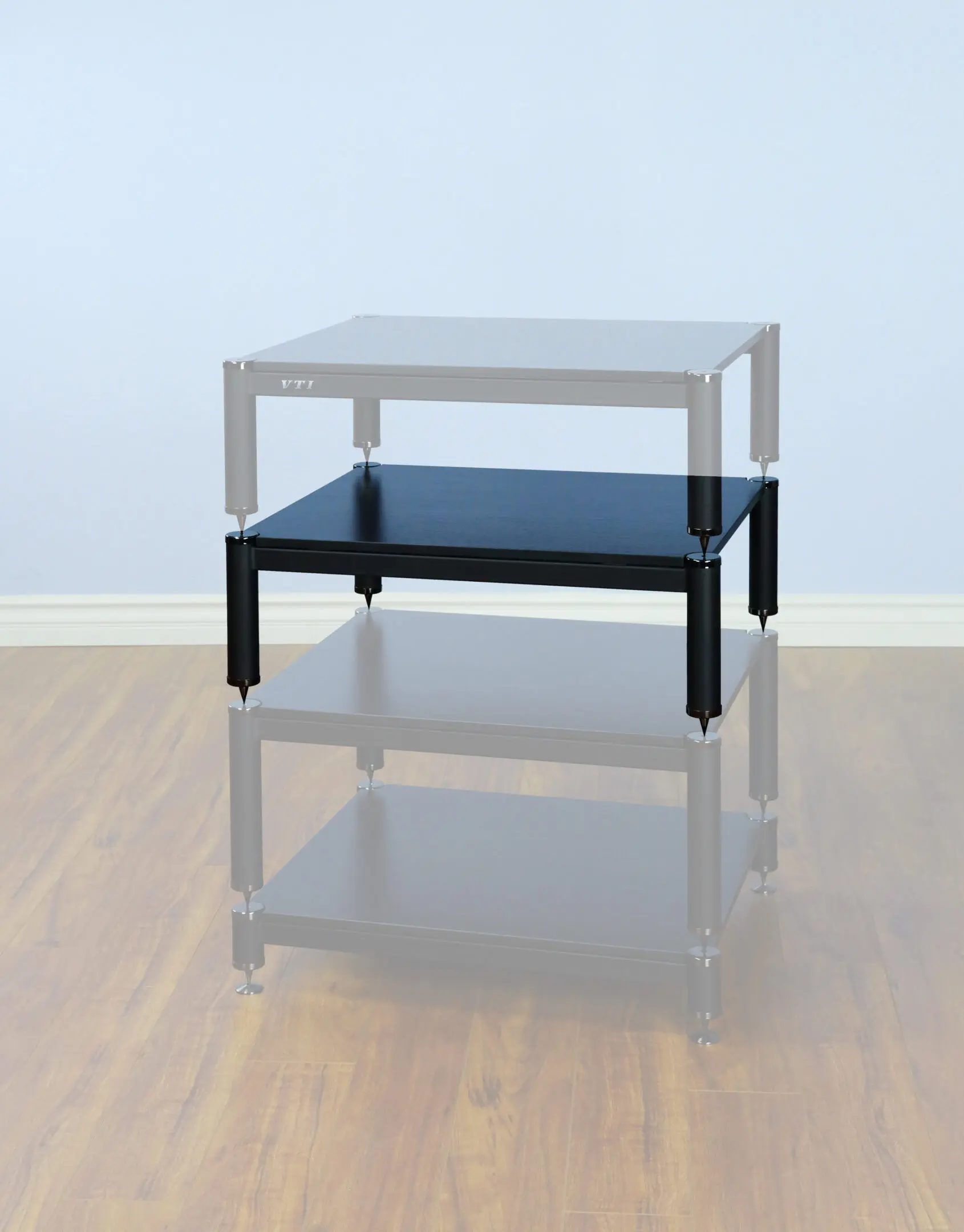

A modern glass and metal table with a black shelf.
BL404-02-7-inch1

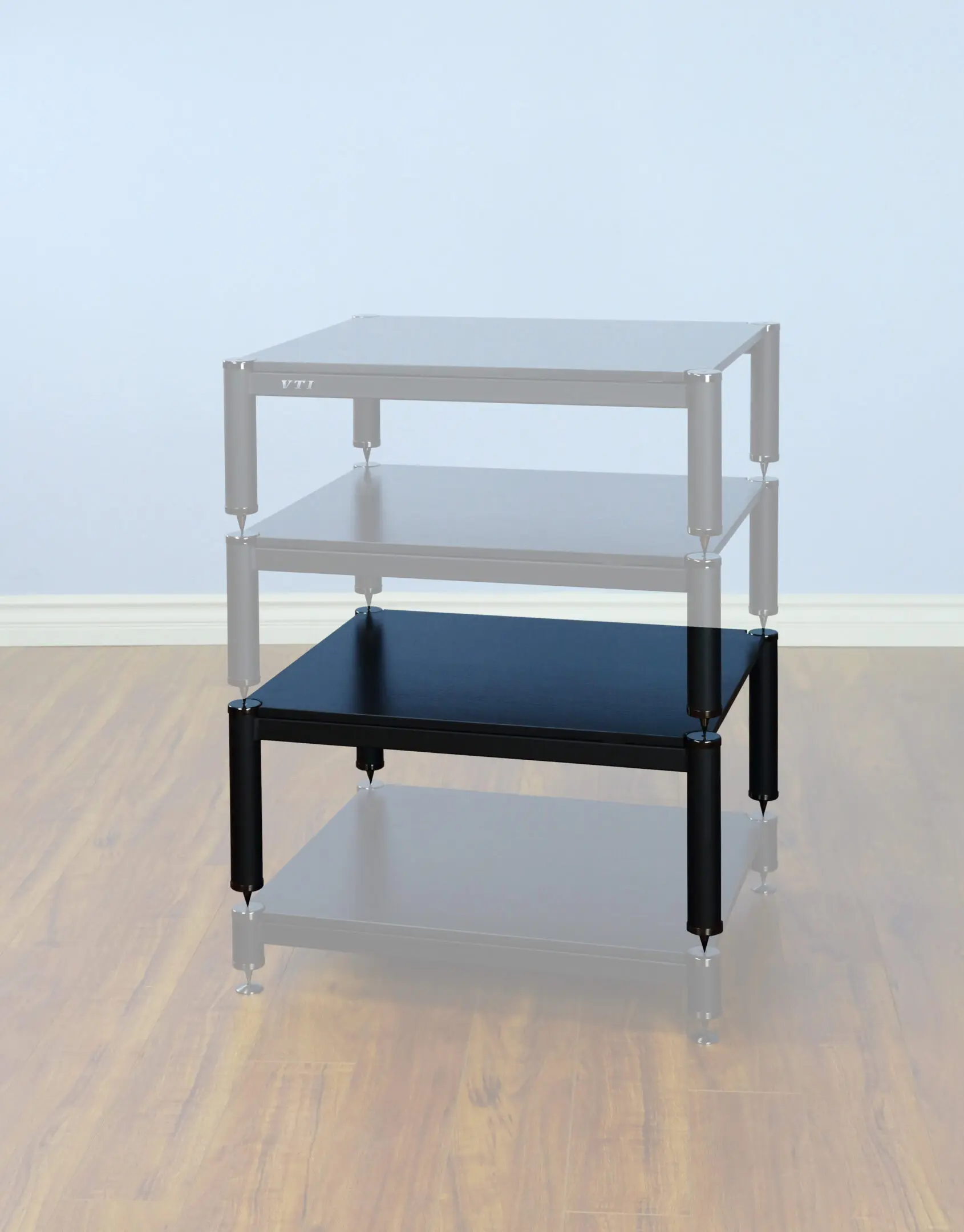

A black glass table with three transparent layers in a room.
BL404-03-9-inch2

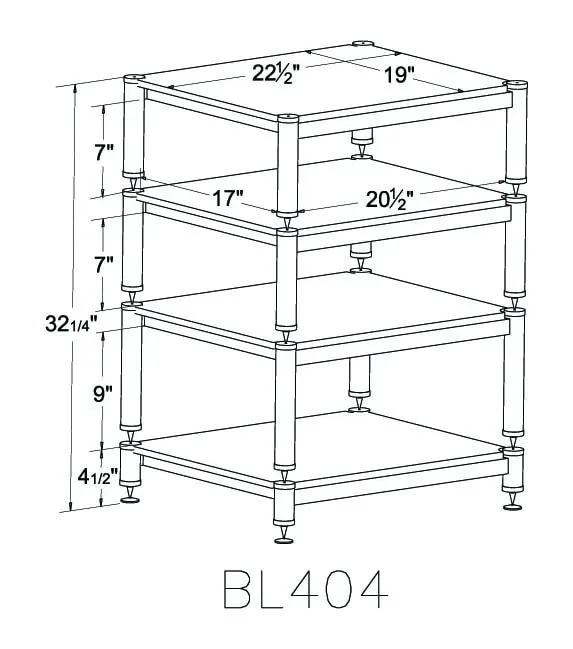

Dimension

Technical drawing of a four-tier shelving unit with dimensions.
Technical drawing of a multi-tier shelving unit with detailed dimensions.

FAQ

  • Q: What is the clearance between each shelf?
    A: The clearance between bottom shelves (top of the shelf to bottom of the frame) is 9″ and it is 7″ between next shelves. Besides, there is about 1 1/8″ frame spacing in-between.
  • Q: What is the opening/width clearance between the poles?
    A: The clearance is 20″.
  • Q: What is depth from pole to pole?
    A: It is 17″.
  • Q: Can additional shelf be added to this unit?
    A: Yes. You can add either 7″ or 9″ height additional shelf.
  • Q: What is weight capacity of this unit and each shelf?
    A: The total weight capacity of this unit is 350 pounds. Each shelf can support 200 pounds.
  • Q: What is the diameter of the poles?
    A: It is 1 1/2″ diameter.
  • Q: How to fill sand or metal bits?
    A: Before you screw the spikes on, fill it with sand or metal bits. Screw the spikes on and turn the unit over.
  • Q: What is the shelf made of?
    A: It is made of MDF (medium density fiber) board and it is very strong. Black shelf is power coated. Color shelf is laminated with a clear coating for protection.
  • Q: What is the frame made of?
    A: The frame is made of steel with powder paint.
